LED Units & Lighting

LED Units and Lighting Kits for Gundam Models

There is a moment every builder chases. You finish the last panel line, snap the final piece into place, and step back to admire the machine you just brought to life. LED units and lighting kits are what turn that moment into something unforgettable. When the eyes glow, when the thrusters burn, and when the reactor core pulses with light, a static plastic model stops being a shelf piece and becomes a presence. This collection gathers everything you need to illuminate your builds, from tiny single point emitters for a mono eye to full multi channel systems that light an entire Perfect Grade frame. Whether you are a first time modeler curious about adding a subtle glow or a veteran wiring up a fully animated diorama, the right lighting kit changes how your work is seen and remembered.

Lighting a Gundam model is one of the most rewarding upgrades you can make, and it is far more accessible than most builders assume. You do not need to be an electrical engineer to run a clean wiring harness through a leg or seat a diffused LED behind a chest vent. With the components in this collection, careful planning, and a bit of patience, you can produce results that look like factory prototypes rather than hobby experiments. Below you will find a complete guide to what these kits do, how to install them, and how to showcase the finished machine so every hour you invested is on full display.

Why Add LED Lighting to a Gundam Kit

Plastic model kits are engineered with incredible detail, but detail alone lives in the shadows. Lighting reveals it. A well placed LED throws highlights across sculpted vents, casts depth into cockpit interiors, and gives translucent parts the internal fire they were designed to suggest. The difference between a lit and unlit build is not subtle. It is the difference between a photograph and a memory.

Beyond raw visual impact, lighting tells a story. A quiet amber glow in the eyes reads as a machine at standby. A sudden burst of white and blue across the thrusters suggests a boost that never ends. Adding motion, pulsing reactors, flickering exhaust, and color shifting cores lets your model imply narrative even while it sits perfectly still. For anyone who displays their collection or shares it online, lit builds command attention that unlit kits simply cannot match. They photograph beautifully, they draw the eye across a crowded shelf, and they turn casual viewers into people who ask how you did it.

What You Can Light on a Gundam Model

Almost every signature feature of a mobile suit can be illuminated, and each area calls for a slightly different approach. Understanding what you want to light before you buy helps you choose the right emitter size, color, and power setup.

Eyes and Head Sensors

The eyes are the soul of a Gundam. A single warm white or green emitter behind the visor, paired with a light diffusing material, produces that iconic sensor glow. Mono eye designs from Zeon type suits need only one focused point, while dual eye faces benefit from a small strip or twin LEDs balanced for even brightness. Because the head is compact, ultra small surface mount emitters and thin gauge wire are your friends here.

Thrusters and Verniers

Thrusters are where lighting gets dramatic. Warm orange and red emitters read as active exhaust, while cool blue and white suggest high output boosters. Larger backpack thrusters can hold diffused caps that spread light evenly across the nozzle, and clear or tinted aftermarket thruster parts amplify the effect. Wiring multiple thrusters to a shared channel lets an entire flight pack ignite at once.

Beam Weapons and Sabers

Beam sabers and rifles become genuinely stunning with internal lighting. A translucent saber blade lit from the hilt glows along its full length, and a rifle muzzle fitted with a small emitter suggests a charged shot ready to fire. These runs require a bit of planning because the wiring must pass through the arm and hand, but the payoff is a weapon that looks powered rather than molded.

Reactor Cores and Chest Units

The chest reactor is the heartbeat of the build. Pulsing and breathing effect boards make a core slowly brighten and dim, mimicking a living power source. Color shifting units cycle through hues for an even more cinematic result. Because the chest cavity is usually roomy, this is one of the easiest and most impactful places to start your first lighting project.

Cockpits, Panels, and Accents

Small details reward the patient builder. A faint glow inside an open cockpit hatch, backlit vents along the skirt armor, or subtle indicator lights on the shoulders add realism that viewers feel before they consciously notice it. These accent lights are perfect uses for leftover emitters from a larger kit.

Power Sources and Battery Bases

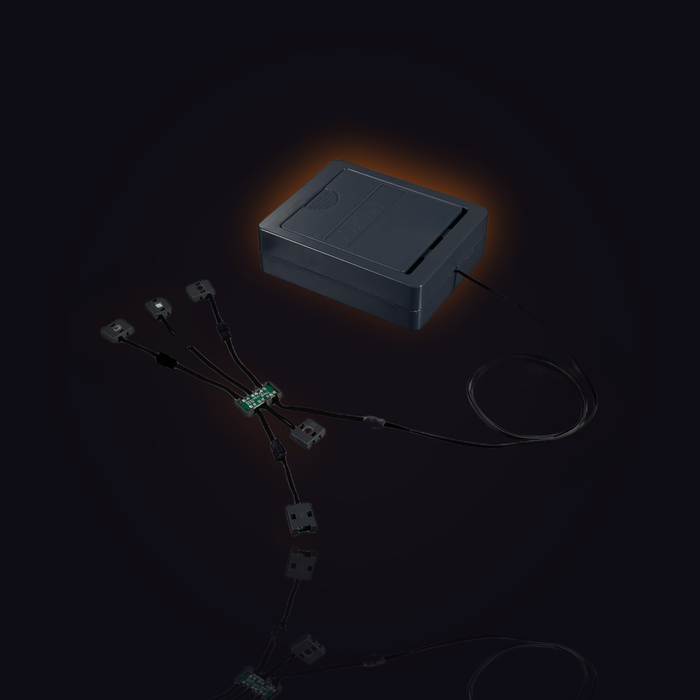

Every lit model needs power, and how you deliver it shapes your entire installation. The most popular approach is a battery base, a display stand that houses coin cells or larger batteries and feeds current up through the model. Battery bases keep the build cordless and portable, which is ideal for photography and for moving pieces around a shelf. Many bases include a hidden switch so you can turn the whole model on or off without touching the suit.

For larger kits or animated dioramas, a wired power supply removes battery life worries entirely and delivers steady brightness for long display sessions. Some builders route power through the display stand arm, hiding wires inside the support so nothing breaks the illusion. When choosing a power method, consider how many channels you plan to run, how bright you want them, and whether the model will move between locations. A simple two LED head glow can live happily on a single coin cell, while a fully lit flagship frame may want a dedicated supply and a distribution board to keep voltage even across every emitter.

Installing LED Units Step by Step

Installation is where beginners hesitate, but the process is logical and forgiving once you understand the flow. The golden rule is to plan the wiring path before you glue or seat a single emitter. Think about where the light needs to appear, where the power comes from, and how the wire travels between them without pinching when the model poses.

Start by test fitting each emitter in its target location while the parts are still loose. Confirm the glow lands where you want it and that the diffusion looks even. Next, map the wire route, usually down through the neck, along the torso, and out through a leg or the back into the stand. Drill small channels where needed with a pin vise, always removing less material than you think you need and enlarging gradually. Thin gauge wire and a light touch keep the frame clean.

Solder or connect your emitters to the chosen channels, insulate every joint so nothing shorts, and test the full circuit before final assembly. It is far easier to fix a dim LED now than after the armor is snapped on. Use heat shrink tubing to tidy junctions, secure loose wire with small dabs of adhesive so it does not rattle, and route everything so the model can still move through its full range of poses. Finally, seat the armor, connect the base, and switch it on. That first successful test after final assembly is the reward for all your planning.

A few practical tips make the whole job smoother. Work in good light, keep a notebook of which channel controls which feature, and label your wires if you are running several. Diffusion is everything, so experiment with frosted material, sanded clear parts, and tinted lenses to soften harsh points into a natural glow. And never rush the test phase. Every problem you catch on the bench is one you avoid on the shelf.

Choosing the Right Kit for Your Grade

The scale and complexity of your model guide which lighting approach fits best. Larger, more detailed kits offer more room and more surfaces to illuminate, which makes them ideal candidates for ambitious multi channel installations.

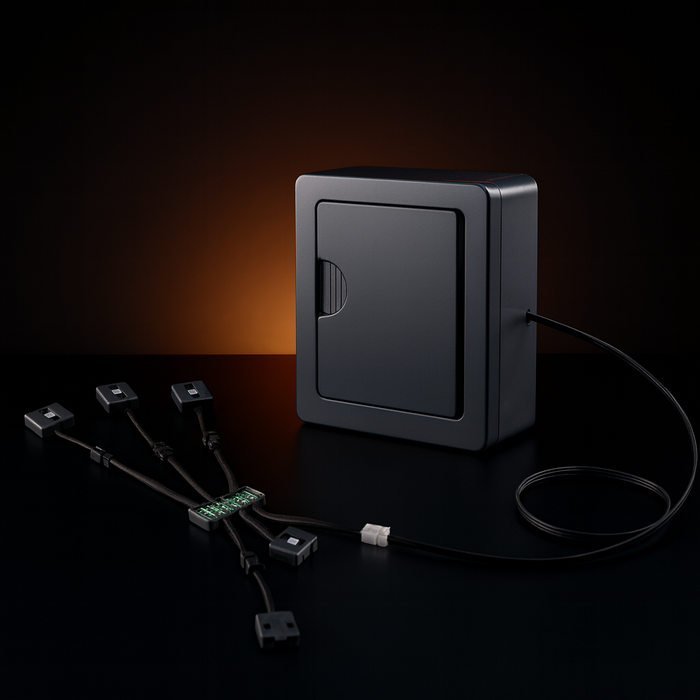

• Perfect Grade builds: These flagship kits have the internal volume and part separation to support fully wired frames, moving reactors, lit weapons, and dozens of accent points. If you want a showpiece with lighting in every signature area, start with a Perfect Grade kit and plan a multi channel system around it.
• Master Grade builds: A great balance of detail and manageable size, these kits handle head glows, thrusters, and a lit chest core beautifully without demanding an overwhelming wiring job. Pair a Master Grade kit with a battery base for a clean, cordless result that looks professional.
• Accent lighting for any scale: Even smaller grades benefit from a single well placed emitter in the eyes or reactor. Start small, learn the process, and scale up your ambitions with each new build.

If you are still deciding which model to light next, browse our roundup of the best Gundam model kits to find a frame that matches your skill level and the effect you want to create.

Showcasing Your Illuminated Build

A lit Gundam deserves a proper stage. The way you display the finished machine determines how much of your work actually gets seen. Lighting looks most dramatic in a controlled environment where ambient light is low and your emitters can dominate the scene. This is exactly where a good display setup earns its place.

Enclosed display cases protect your build from dust and accidental knocks while framing the glow like a museum exhibit. A dark backing or subtle interior surface makes colored light pop, and a case keeps curious hands and pets away from delicate wiring. Explore our range of display cases to find an enclosure sized for your grade, whether it is a compact case for a single suit or a larger unit that stages a full lit diorama.

For photography, dim the room, let the LEDs carry the exposure, and experiment with angles that catch the glow across sculpted surfaces. Reflective bases, mist effects, and simple colored backdrops turn a good shot into a portfolio piece. When your model is the only light source in the frame, every hour you spent wiring it shines through, literally and figuratively. Sharing those images is one of the great joys of the hobby, and lit builds consistently earn the strongest reactions from fellow modelers.

Bring Your Build to Life

Lighting is the upgrade that transforms a finished kit into a living machine. From a single glowing eye to a fully animated reactor, the components in this collection let you tell a story with light and give your best work the presence it deserves. The process is more approachable than it looks, the payoff is immediate, and every build you light teaches you something that makes the next one better. Browse the LED units, battery bases, and lighting accessories in this collection, pick the effect that excites you most, and start planning your next illuminated masterpiece today. Your machine is waiting to power on.
